This manual plugging unit ensures precise and consistent rock sampling. Modular, lightweight, robust, and powerful, it is designed for easy cleaning and is widely used in wellsite operations, laboratory environments, and detailed geological analysis.
The Electric Plugging System is constructed from stainless steel and is fully removable. Its substantial weight ensures excellent stability and effectively absorbs vibrations. The basin is resistant to all types of fluids and is equipped with a high-viscosity recirculating pump. Two lubrication lines are pre-installed: one for fluids such as water, brine, drilling mud, or mineral oil; the other for air or nitrogen. Designed for demanding wellsite and laboratory environments, the system produces precise and consistent plug samples for SCAL analysis, rock mechanics testing, and advanced petrophysical applications.

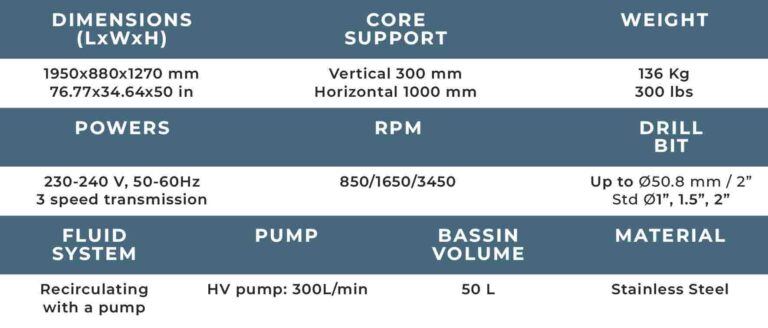

Material:
Stainless steel
Motor:
(230-240V,50-60HZ) / 3-speed transmission
No load speed 850/1650/3450 RPM
Pump High Viscosity:
(220V,60HZ) / 370 W/20-100L/min
Recirculate fluid system
Measures:
1950x880x1270 mm/ 6.4×2.9×4.2 ft
Weight:
136 kg /300 lb
Orientation:
From 0° to 45°
Core support with clamping system:
Vertical 300 mm & Horizontal 1100 mm)
Basin Volume:
50L
Power supply:
220-230V/50-60Hz
Other options under request
Packaging:
Heat treated certified wooden box (2140x970x780 mm / 84.25×38.19×30.71 inc)
220 kg / 4880.89 lb
