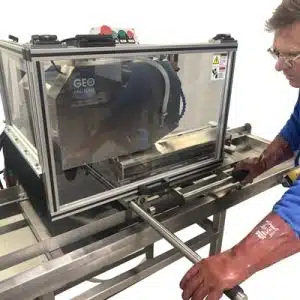

This core saw model features a diamond blade and is built for mining operations worldwide. Made from corrosion-resistant stainless steel, it delivers high-speed cutting for large-volume production. Its manual, electronics-free design ensures maximum reliability and easy maintenance, even in remote sites.
BUILT IN STAINLESS STEEL FOR LONG-TERM DURABILITY AND RELIABLE PERFORMANCE

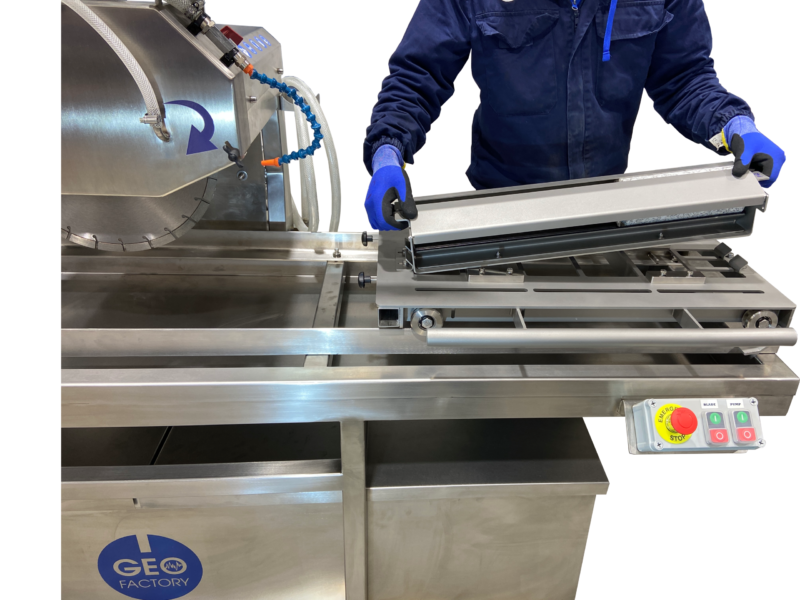

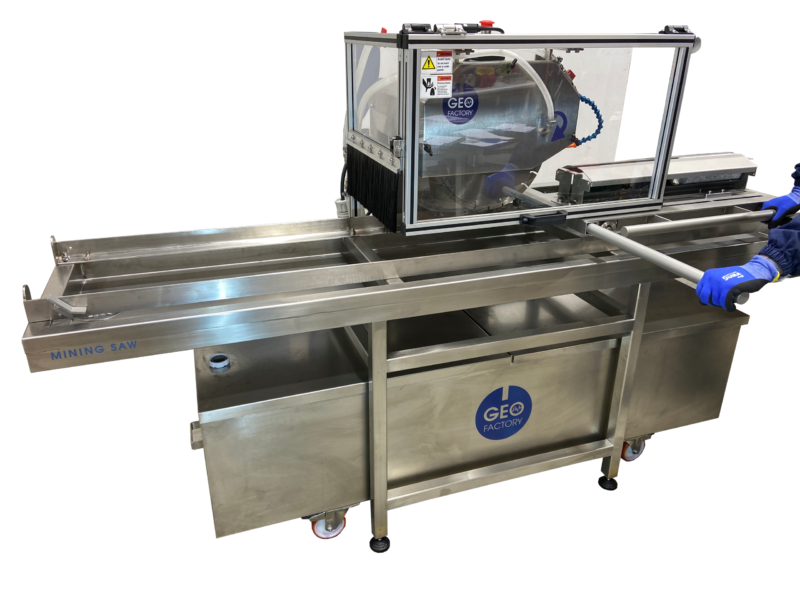

The Mining Core Saw is built from 100% stainless steel for maximum corrosion resistance and powered by a 12.5 HP motor. Equipped with a removable core holder, it ensures stable and efficient cutting of fractured cores up to PQ size. With a cutting speed of approximately 0.8 seconds per cm (reference measured on granite), it delivers high productivity while maintaining safe operation. Designed for ease of use, the machine is fully plug-and-play, allowing quick installation and immediate operation on site. The integrated decantation tank ensures efficient water recirculation and easy cleaning. Performance is optimized by selecting the appropriate blade diameter and specification according to the rock type, ensuring consistent cutting quality and extended blade life.

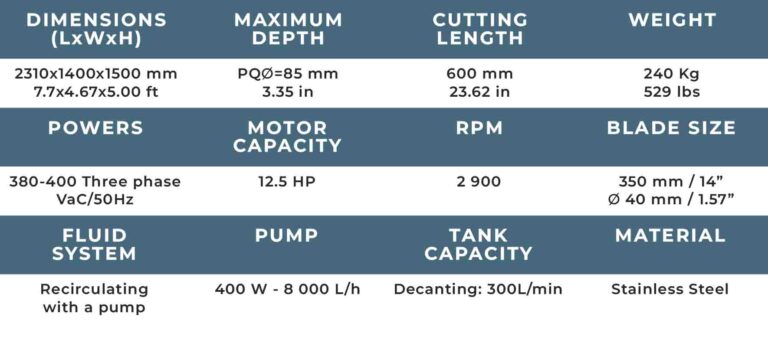

Material
Stainless Steel
Dimensions:
2310x1400x1500 mm
7.7×4.67×5.00 ft
Maximum cutting depth:
PQ Ø=85 mm / 3.35 in
Cutting length:
600 mm / 1.97 ft
Blade size:
350 mm / 14 in
Ø 40mm / 1.57 in
Weight:
240 Kg
529 lbs
Power supply:
Three-phase 380-400 VaC / 50 Hz
Motor power:
12.5 HP
RPM:
2 900
Fluid system:
Recirculating with a pump
Pump:
400 W – 8000 L/H
Tank capacity:
Decanting Tank 300L
FAQS
Can this lapidary rock saw be used to cut all types of rocks?
Yes, the lapidary rock saw is designed to cut through various types of rocks, including hard materials like granite, which are commonly encountered in mineral exploration. Whether working with sedimentary, igneous, or metamorphic rocks, the diamond blade ensures precise and efficient cutting across these geological formations.
Can the lapidary rock saw be used for both wet and dry cutting?
The Mining Saw is optimized for wet cutting, which is particularly beneficial when working with hard rocks like granite and dense sedimentary formations in mineral exploration. The wet-cutting process enhances the lifespan of the diamond blade, reduces dust, and maintains optimal cooling when the blade operates at high rpm.
Is the lapidary rock saw portable enough for field use?
While the Mining Saw is robust and specifically designed for industrial use, its size and weight make it more suitable for stationary applications rather than portable fieldwork. However, in mineral exploration, particularly when cutting core samples from sedimentary, igneous, and metamorphic rocks, its powerful 12HP motor operating at high rpm ensures it can efficiently handle large and demanding tasks.
What materials are used to construct the Mining Saw, and how does it ensure durability?
The Mining Saw is constructed from stainless steel, making it highly resistant to corrosion, which is essential for the demanding environments encountered in mineral exploration. Its powerful motor, operating at 2900 rpm, combined with a durable diamond blade, ensures reliable and long-lasting performance when cutting through various rock types, including granite and sandstone, found in sedimentary, igneous, and metamorphic formations.
