This drill sample unit ensures optimal stabilization and vibration absorption, allowing top/bottom core section drilling, ideal for wellsite operations or laboratory environments.
The Top Face Plugging unit is made of stainless steel. Its heavy weight guarantees optimum stabilization and absorbs all vibrations. The basin is resistant to all types of fluids and equipped with a flexible PVC plate to minimize splashing. Additionally, an area is available on the table for placing tools. The Top Face Plugging unit is equipped with a pump, drill, and general power, as well as an emergency button to stop the plugging operation at any time.

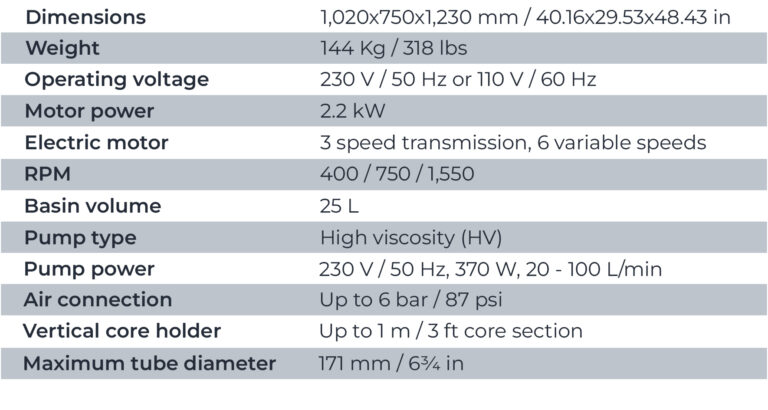

Material:
Stainless steel
Dimensions:
1020x750x1230 mm; 40.16×29.53×48.43 in
Weight:
144 Kg
Electric motor:
3-speed transmission and 6 variable speeds
Power:
2.2 kW
Voltage:
230 V/ 50 Hz or 110 V/ 60 Hz
Drill Speed:
Loaded 400/ 750/ 1550 rpm
Table voltage:
230 V/ 50 Hz or 110 V/ 60 Hz
Basin volume:
25 L
Pump:
High viscosity (HV)
Air connection (Dry drilling):
Up to 6 bar/ 87 psi
Vertical core holder:
Up to 1 m/ 3 ft core section
Max tube diameter:
171 mm/ 6 3/4 in
Packaging:
Certified wooden box
