The Large Diameter Core Saw enables precise cutting of large-diameter cylindrical samples, concrete blocks and geological formations. Its adaptable clamping system securely holds different sample shapes and sizes, providing stability throughout the cutting process and making the machine suitable for sample preparation.
The current solution is based on a TYROLIT® industrial saw platform and adapted by Geofactory with a dedicated sample holding and clamping system for large-diameter cores and blocks, together with Geofactory diamond blades. This configuration provides a robust laboratory solution while Geofactory develops its next-generation platform, integrating the cutting, clamping, cooling and safety systems within a fully engineered Geofactory design.

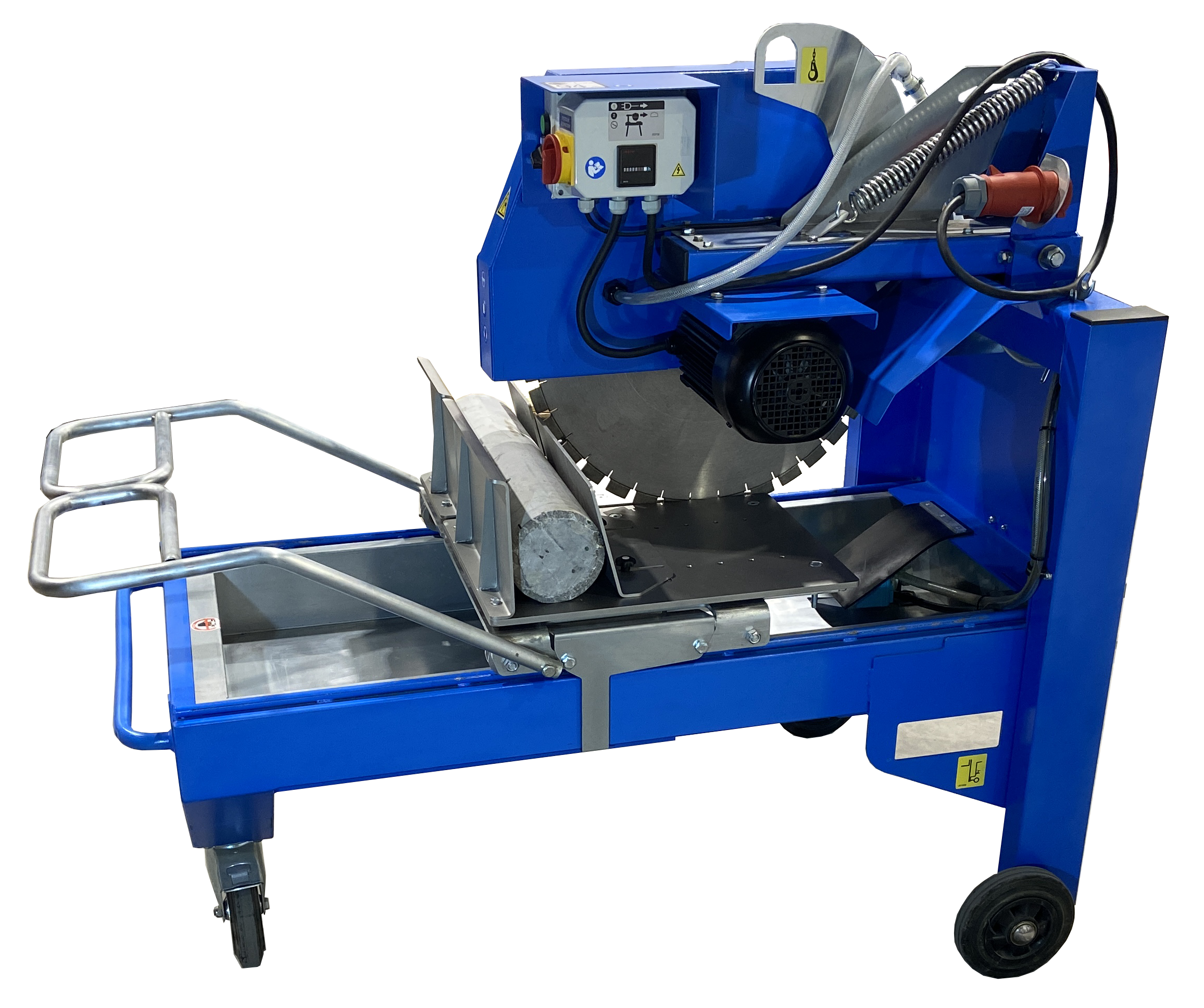

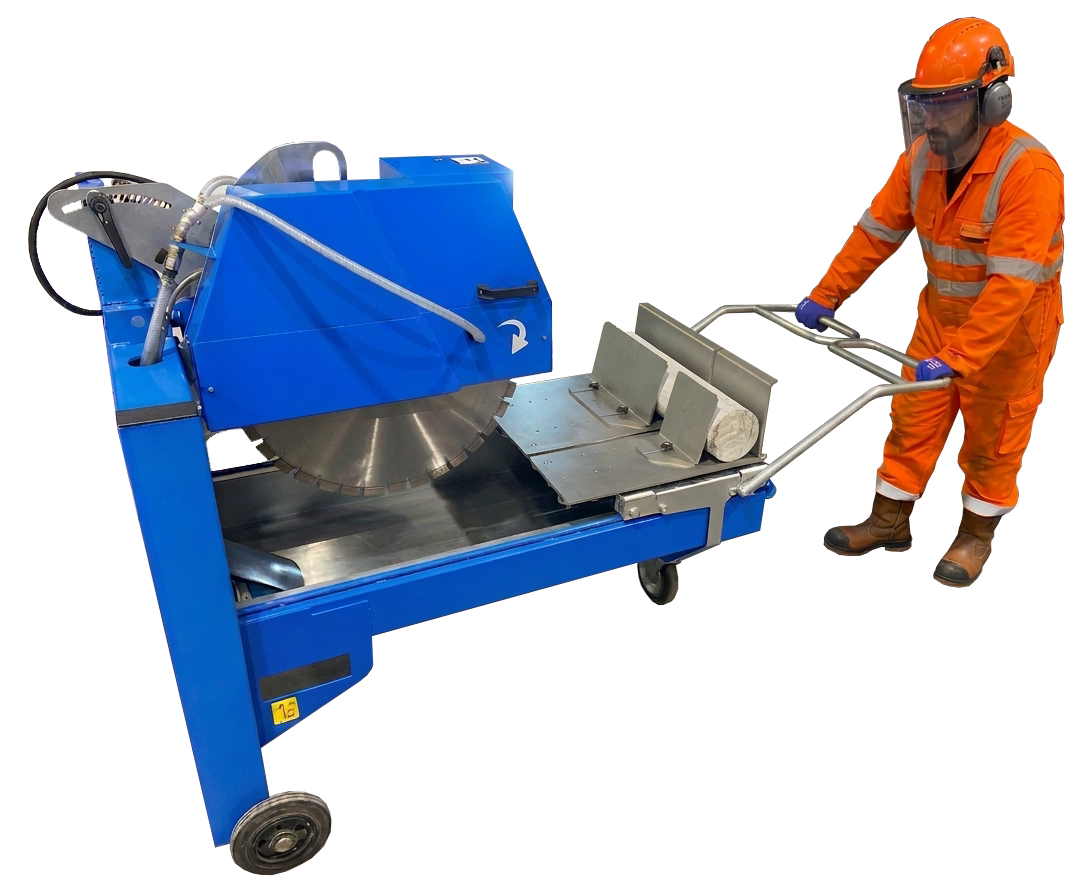

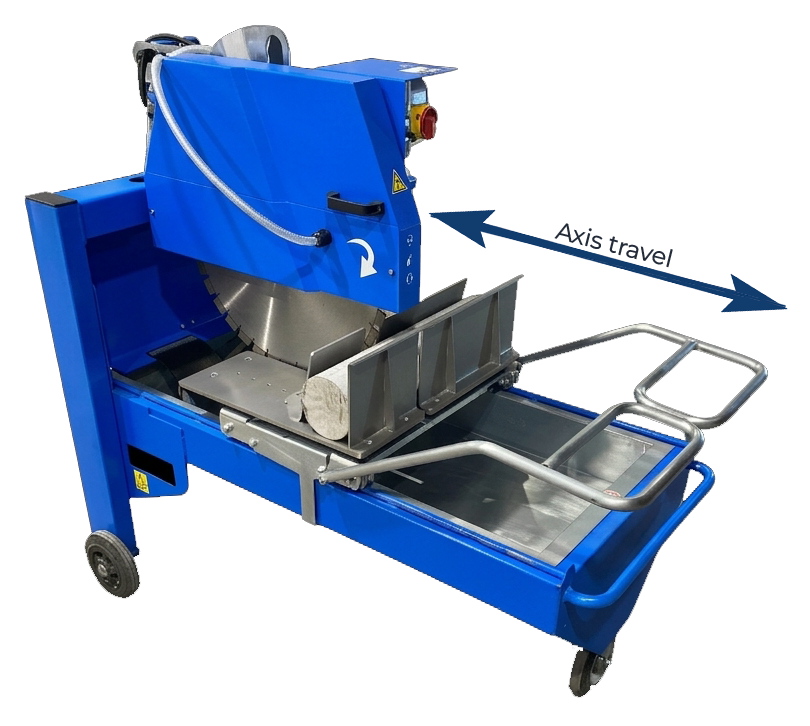

The XL Sample Saw is designed for cutting large-diameter cylindrical samples, geological cores, rock samples and concrete blocks. Its adaptable clamping system accommodates different sample shapes and sizes, making the machine particularly suitable for geological, geotechnical and laboratory sample preparation.

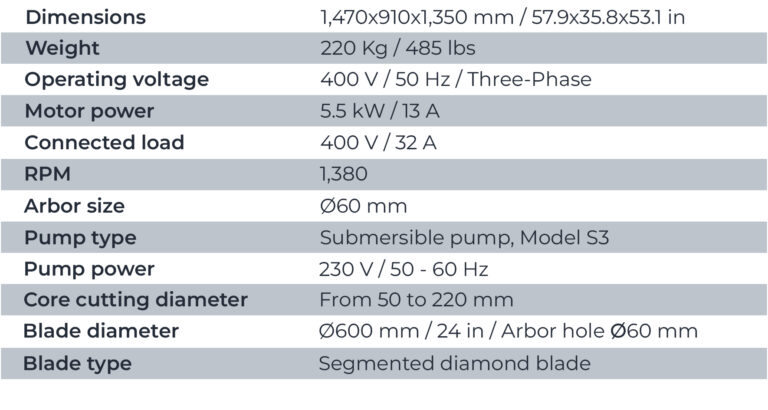

The XL Sample Saw can cut cylindrical samples with diameters from 50 mm up to 220 mm. This large cutting capacity makes it suitable for preparing oversized geological cores and other samples that cannot be processed with conventional laboratory rock saws.

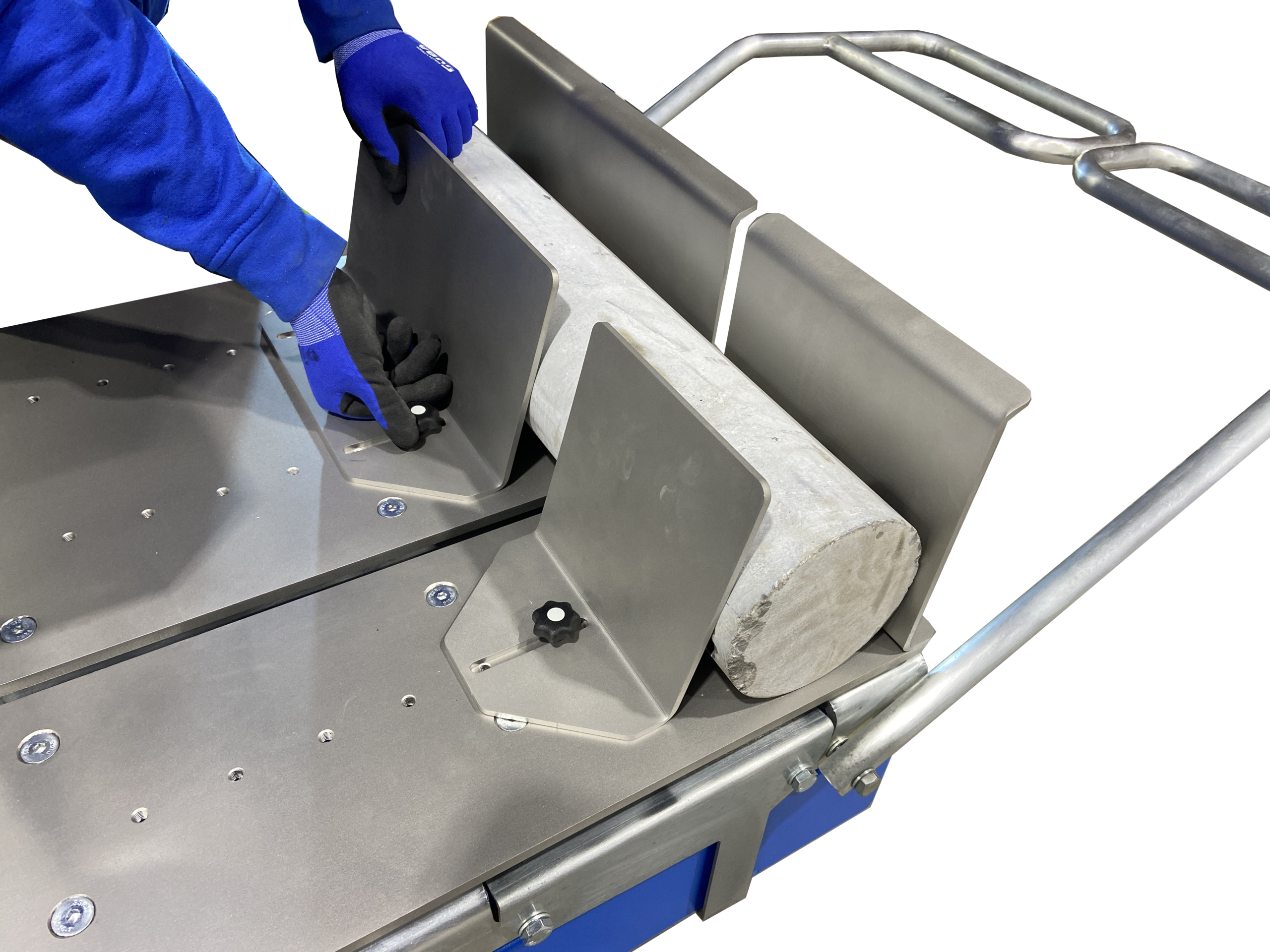

The XL Sample Saw uses an adaptable clamping system designed to securely hold samples of different diameters, shapes and sizes. Proper sample stabilization reduces movement during cutting and helps achieve a more precise and controlled cut, particularly when working with large-diameter cores, rock samples or blocks.

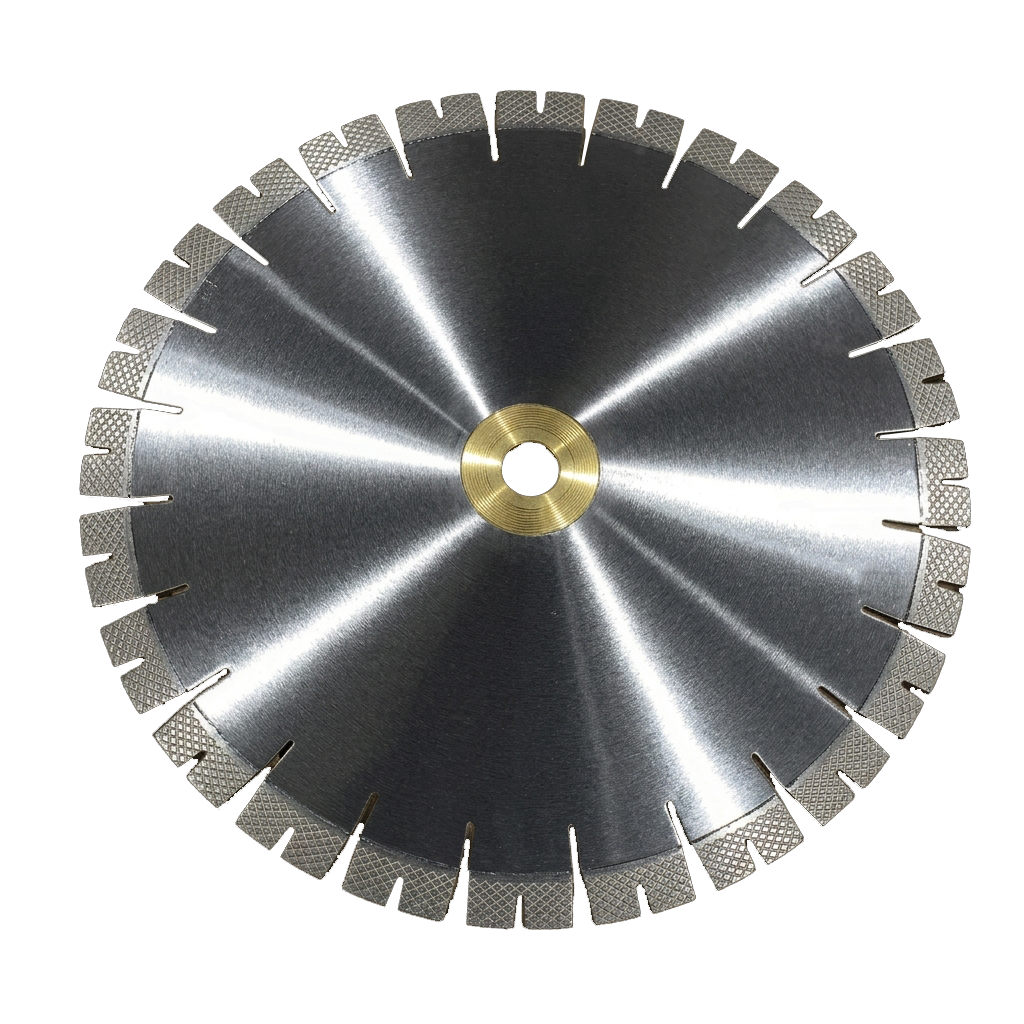

The XL Sample Saw uses a 600 mm diameter segmented diamond blade with a 60 mm arbor hole. The diamond blade is designed for cutting hard geological materials and provides the cutting capacity required for large-diameter samples used in geological, geotechnical and laboratory applications.
