reference: prep-104

Core Logging Table

Geofactory has designed a range of core supports to optimize handling and processing in an on-site environment. Perfectly adapted to accommodate all core diameters with foam or epoxy, these tools are extremely robust and removable for easy shipment. When combined with a suitable toolbox and a kit for marking, all these items will ensure a perfect setup for your core handling operation.

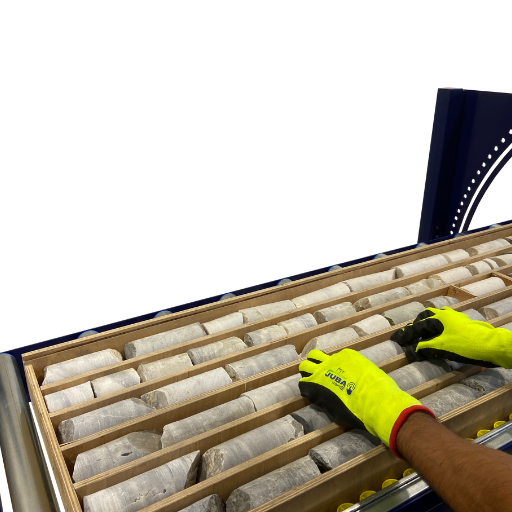

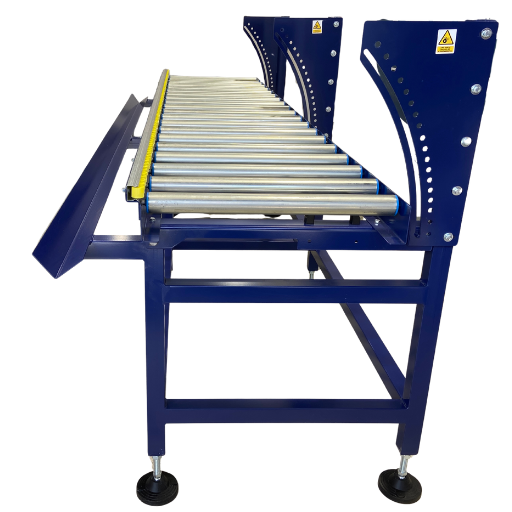

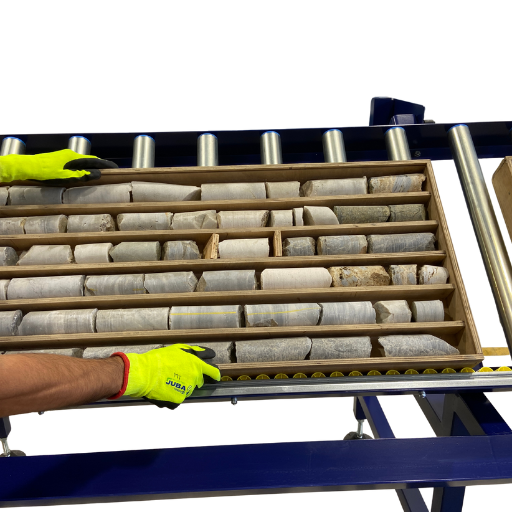

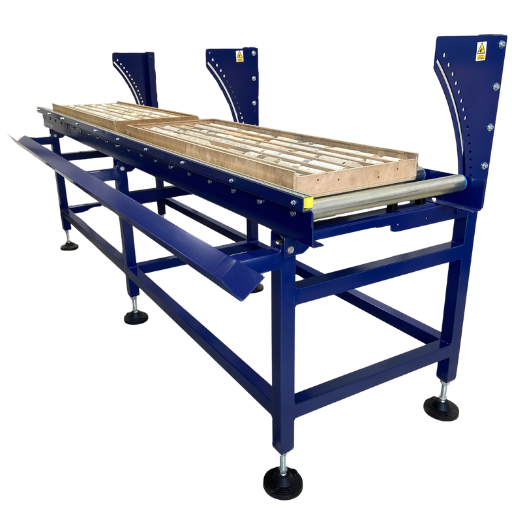

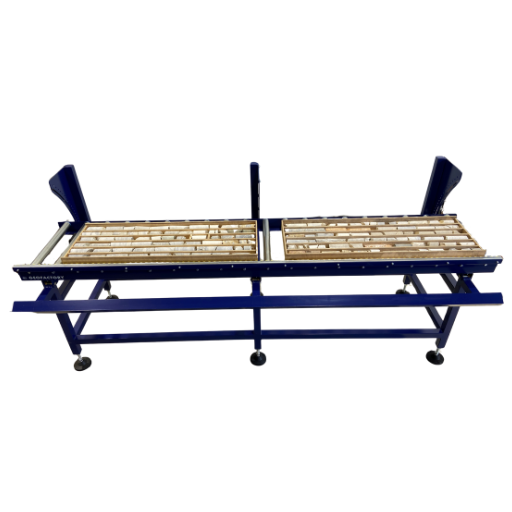

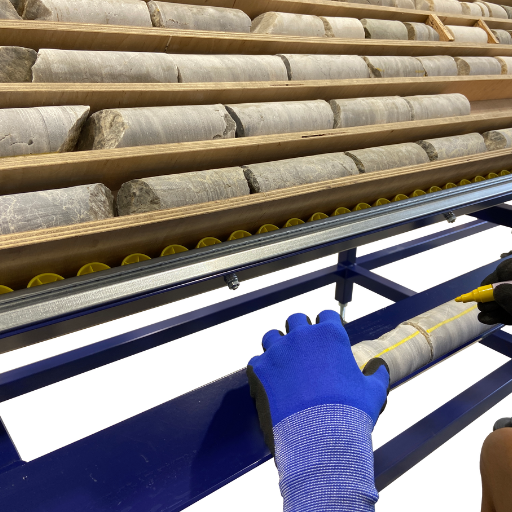

The Geofactory Core Logging Table is a durable and ergonomic workstation designed for core sample logging. It features a flat or 40° inclined working surface, adjustable height, and a modular structure compatible with standard core trays. Built to CE standards, it’s ideal for mining, geotechnical, and research environments.

PREP-104

Dimensions:

300x90x129 cm /9.84 × 2.95 × 4.23 ft

Weight:

146 Kg / 322 lbs



Rollers length:

730mm / 29 inch

Core Length Capacity:

Aproximatelly 14 m / 45 ft per table

What is a core logging table used for?


A core logging table is used in the mining industry to analyze and log drill core samples. The table provides a stable surface for geologists to inspect, measure, and record data about the core samples. This ensures accurate documentation of geological findings, helping determine the mineral content and structure of the rock.



How do I set up the core logging table?


Setting up the logging table is simple:

  • For standard models, unfold the legs and secure the table on a stable surface.
  • For mechanized logging tables, plug into a power source to adjust the table height as needed.
  • Attach accessories like chip trays, core trays, and laptop desks to optimize your workspace for core logging.
  • In the field, make sure to position the table at the right level to ensure smooth and safe operation during the core logging process.



How do I maintain and clean the core logging table?


To maintain your logging table:

  • Wipe down the surface with a damp cloth after each use, especially after handling core trays or chip trays.
  • For deeper cleaning, use a mild detergent and make sure the stainless steel components are dry before storing.
  • Check for any loose bolts or screws to keep the table stable during core logging.
  • If using a mechanized model, ensure the electric components are kept dry and are functioning correctly.



What are the key features of your core logging table?


Our core logging tables are designed for maximum efficiency, durability, and safety during the logging process. Key features include:

  • Durable Build: Constructed with high-quality stainless steel to withstand rugged field conditions.
  • Mechanized Options: Electric models allow for easy height adjustments, providing a comfortable working level.
  • Efficient Tray Storage: Our tables offer ample space for organizing core trays and core boxes during the logging process.
