A slabbing core saw, or lapidary saw machine, precisely cuts core drill samples with a diamond blade, essential for oil and gas, mining, geotechnical engineering, and petrophysical analysis.
Engineered for geological laboratories in the Oil & Gas sector, the Slabbing Saw 500 delivers precise longitudinal cuts of core samples. Its semi-automated system ensures clean, consistent slabbing at selectable speeds. Built in stainless steel and compatible with wet or dry cutting, it’s the ideal solution for accurate, high-quality sample preparation in demanding core analysis workflows.
The Slabbing Saw 500 is perfect for slabbing (1/2-1/2) core drill samples and preparing biscuit slices (1/4-3/4). It ensures precise cuts above geological formations or inner tubes made of aluminum or fiberglass, commonly used in Oil & Gas analysis

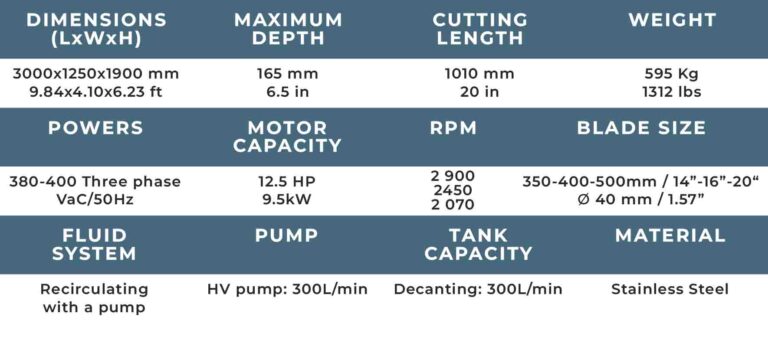

3000x1250x1900 mm / 9.84x 4.10x 6.23 ft
594 Kg
380-400 VaC / Three-Phases / 50Hz
9.5 kW / 12.5 HP
165 mm/ 6.5 in with a 500 mm blade
1008 mm/ 3.33 ft
230 W/ 50Hz / 1200 L/hour (depend on viscosity)
3x Nozzles
300L Decantation tank
10,5 kW, 380-400 VaC / Three-phases / 50 Hz
What is the maximum length and diameter of core samples that the Slabbing Saw 500 can cut?
The Slabbing Saw 500 can cut core samples up to 1000mm (3.33 feet) in length and 165mm (6.5 inches) in diameter. This capability makes it ideal for handling larger core samples commonly encountered in geological and laboratory settings. The adjustable blade height ensures accurate and efficient cutting of long samples.
Can the Slabbing Saw 500 cut through an aluminum tube?
Yes, it can. This is a standard configuration in the Oil and Gas industry where the core is encapsulated inside an aluminum tube (10mm thickness) known as an inner tube. The Slabbing Saw 500 efficiently cuts through the aluminum tube using appropriate diamond blades and proper lubrication with water.
What types of geological formations can be cut with the Slabbing Saw 500?
The Slabbing Saw 500 is versatile and can cut through a variety of geological formations, including hard rocks such as granite, basalt, and quartzite. It is also effective on sedimentary materials like limestone and sandstone, and it can efficiently cut through aluminum tubes. The machine’s diamond blade is designed to handle the hardness and abrasiveness of these materials, ensuring clean and precise cuts.
Is the Slabbing Saw 500 capable of both dry and wet cutting?
Yes, the Slabbing Saw 500 is capable of both dry and wet cutting. It features a water system with a valve to control the liquid flow for wet cutting. For dry cutting, the saw can be equipped with a dust extractor to ensure safe and efficient operation. This versatility makes the Slabbing Saw 500 suitable for a wide range of cutting applications and environments.
