Fluid Pipe (All Diameters)

The Fluid Pipe is a suitable solution for transporting rock samples, such as shale, immersed in mineral oil or other fluids. This technique ensures structural integrity is maintained, protects it from external elements, and enhances the quality of sampling

Shale conservation, Shale transportation

The Fluid Pipe offers an optimal solution for immersing rock samples, particularly from shale formations, in specialized preservation fluids such as mineral oil, drilling mud, and other suitable compounds. Designed to meet the stringent requirements of certain SCAL (Special Core Analysis) programs, the pipe ensures safe handling and sample integrity through its integrated valve system, which allows for controlled and efficient degassing.

STAB-201 STAB-202

Test Session

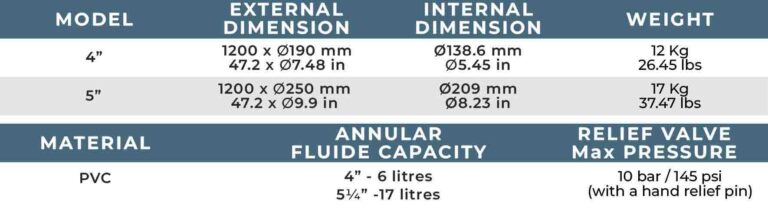

Sizes (4”)
(5¼”)

1200×190 mm (large x diameter)
47.2×7.48 in
1200×250 mm (large x diameter)
47.2×9.9 in

Wall thickness (4”)
(5¼”)

10.7 mm/ 0.42″
14 mm/ 0.55”

ID size (4”)
(5¼”)

1100×140 mm (large x diameter)
43.3×5.5 in
1100×193 mm (large x diameter)
43.3×7.6 in

Pipe material

PVC (Polyvinyl chloride)

Handles and clamps

Steel

Weight

11.5 Kg/ 16.5 Kg

Inner volume (4”)
(5¼”)

0.0165 m3/ 16.56 L
0.025 m3/ 25 L

Outside Volume (4”)
(5¼”)

0.034m3/ 33.73 L
0.049m3/ 49.44 L

Relief valve max pressure

10 bar/ 145 Psi (with a hand relief pin)

Max operating temp.

60 ºC/140 ºF

More Product Info:

What is the Fluid Pipe used for in geological sampling?

The Fluid Pipe is specifically designed for core preservation during geological sampling. It facilitates the secure transportation of rock samples, such as shale, immersed in mineral oil or other fluids, protecting the sample’s structural integrity and preventing contamination from external elements.

How does the Fluid Pipe contribute to core sample integrity?

By immersing rock samples in fluid, the Fluid Pipe minimizes structural disturbances and prevents exposure to air, which can alter the core’s properties. This method is essential for preserving the quality of geological samples for accurate analysis.

What fluids are commonly used with the Fluid Pipe?

The Fluid Pipe is commonly used with mineral oil or other preservation fluids ideal for core analysis. These fluids help maintain the original rock conditions, especially when handling sensitive samples like shale or other sedimentary formations.

What makes the Fluid Pipe suitable for SCAL programs?

Some Special Core Analysis (SCAL) programs require core preservation techniques to ensure the sample remains original. The Fluid Pipe meets these requirements by providing secure immersion and preventing oxidation, ensuring the accuracy of advanced geological studies.

Can the Fluid Pipe be used for both horizontal and vertical transportation?

Yes, the Fluid Pipe is designed for versatility in core sample handling. It can be adapted for horizontal and vertical transportation, providing flexibility for various fieldwork and laboratory setups.

What safety features are included in the Fluid Pipe design?

The Fluid Pipe includes a specialized valve system that ensures correct degassing during sample preservation and handling. This feature protects the rock sample and guarantees safe operation for geological technicians during transportation and storage.
