The Pneumatic Core Drill efficiently drills geological samples with a pneumatic engine, ensuring precision and durability in challenging environments (ATEX)
The pneumatic core drill unit has been designed for processing in hazardous areas and It suits with offshore standard air supply. The machine comes with an external swivel and the rotation speed can be manually controlled. The mounting base is adapted to our Plugging Table. The pneumatic plugging motor compulsory works with a standard 100psi rig supply.

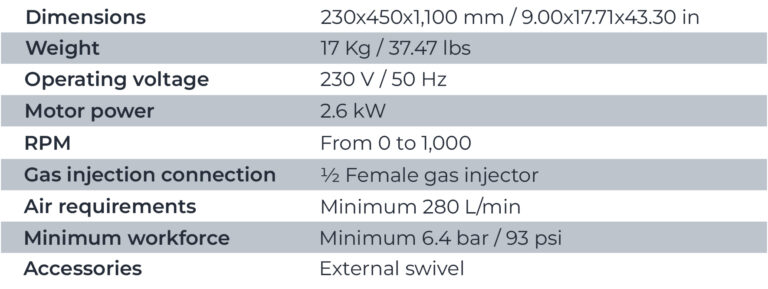

Dimensions:
230x450x1100 mm/ 9.00×17.71×43.30 in
Engine Block Power:
2.6 Kw
Voltage:
230 V / 50 Hz
Drill Speed:
RPM : 0/1000
Gas injector connection:
½ Female gas injector separated from the engine nose
Air Consumption requirements:
Minimum 280 L/min
Min. Workforce:
Minimum 6.4 bar/ 93 psi
Accessories:
External swivel
Weight:
17 Kg
