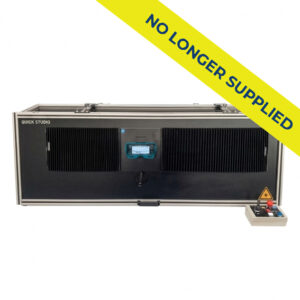

The Quick Studio 360° is a device designed to describe full drill core sample and determine the presence of hydrocarbons. The viewing cabinet is equipped with a rotative mechanical core support controlled by a joystick that allows the operator to examine the full circumference of the core sample, whether on WH & UV (longwave) light exposure. Using a separate support, it is also possible to work on a slabbed section or a very fractured core and always with the guarantee of good illumination thanks to the anti-shade system.The Quick Studio 360° is suitable for wellsite operations and can also be considered as a substitute for a core viewing room in a laboratory/storage facility.

Big Fluoroscope material:
Phenolic resin plywood reinforced with alumium profile

Black Box dimensions & weight:
1600x500x560mm
147 kg

Rotative core support (360):
2x Stainless steel rolls covered with rubber
Motor semi-automatic (Joystick control)
Tray to pull out the rotative core support and ease the core manipulation

Core support:
Two retread stainless steel rollers, coordinated with a belt (to ensure an accuracy rotation of the core) and motorized.The Core support can be pull out from de Core Studio, by mean of a tray, to ease the manipulation of the core. A device installed to secure a fractured core, during the acquisition procedure, avoiding relative movements between the different core pieces

Enlightenment:

• 2xFluorescent lamp -36W 6500K (WL-Day light)
• 2xFluorescent lamp -36W 5000K (BL-Black light)

• 1xFluorescent lamp -8W (WL-Day light)
• 1xFluorescent lamp -8W (BL-Black light)


Shortwave illumination available on request.

Power supply:
220 V, 50/60 Hz

Visual device:
Slide PVC reinforced bellows (with UV filter google) / ANSI Z87.1

Spare parts:

• 1xFluorescent lamp -36W 6500K (WL-Day light)
• 1xFluorescent lamp -36W 5000K (BL-Black light)
• 1xFluorescent lamp -8W (WL-Day light)
• 1xFluorescent lamp -8W (BL-Black light)
