Reference: SAMP-501

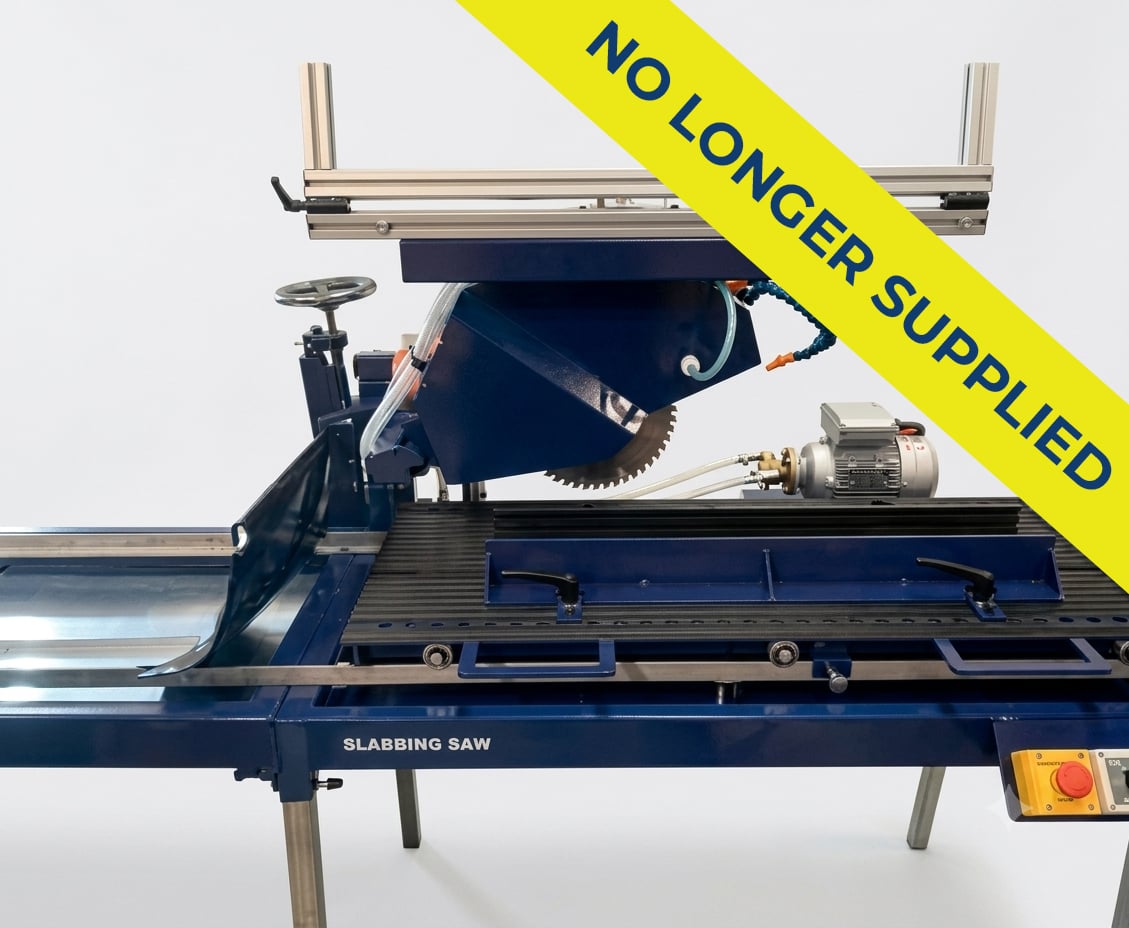

Slabbing Saw 350

Geofactory has designed a Slabbing saw 350 adapted for both the wellsite and laboratory environment. It offers the main advantage that the core sample is moved to the diamond blade and cooled with a steerable hydraulic setup. This system provides more sensitivity to the cut which is really essential particularly when biscuit slices are processed. Moving a manually mechanical crank, the operator can adjust with millimetric accuracy the diamond blade at the inner tube and cut it prior to a plugging or photography operation.

Diamond blade diameter

350mm/ 14 in

Diamond blade thickness

3 mm/ 0.118 in

Maximum cutting depth

108 mm

Maximum cutting length

1005 mm

Power supply

220V/ 50Hz

Dimensions

2700x900x1400 mm / 8.9x3x4.6 ft

Motor Power

2.2kW

Pump

1.1 kW/ 50 L/min

Lubricant system

4x Nozzles

Tank Capacity

50 L

Weight

160Kg
