GeoBox Polyp

The GeoBox Polyp securely stores and protects geological core samples, ensuring easy handling and durability. Its lightweight, moisture-resistant design makes it ideal for field and lab use.

Moisture-resistant core storage solution

Geobox Polyp is a durable, lightweight core storage box delivered flat-packed to minimize transport costs. Made from moisture-resistant polymer sheets, it is quick and easy to assemble on site, providing secure protection for whole core samples. Ideal for mining, oil & gas, and geothermal applications, it ensures long-term preservation of geological assets. Custom sizes available to fit any core diameter or storage program.

Made from 100% recyclable polymer, the Geobox Polyp minimizes environmental impact. Its flat-packed design reduces shipping volume, up to 250 meters of core can be stored per pallet delivered. Optional treatments such as printing, UV protection, or flame retardant can be added upon request.

Suggested minimum order: 500 units

PACK-402

Test Session

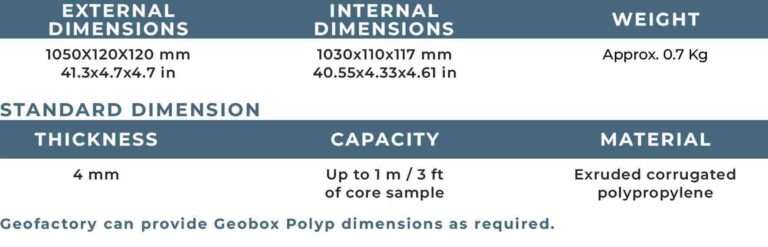

External Dimensions

1050x120x120 mm / 41.3×4.7×4.7 “
Standard dimensions, custom sizes upon request

Tolerances:

Width (TE): +/- 3 mm
Length (OD): +/- 0,7 %
Imbalance: 7 mm/m

Internal Dimensions

1030x110x117 mm /40.55×4.33×4.61 “

Thickness:

4 mm

Grammage:

1000±100 g/m²

Material properties:

Flexural elastic modulus 1200 MPa
Charpy impact resistance at 23°C with notch 60 KJ/m²
Charpy impact resistance at -20°C with notch 8 KJ/m²
Vicat A120 Softening Temperature 10N 150°C
HDT 0.45 MPa 83°C
Density at 23°C 905 Kg/m³

Capacity

Up to 1 m / 3 ft of core samples

Material

Extruded corrugated polypropylene.

Weight

Approx. 0.7 Kg

Optional treatments:

2-sided crown for printing adhesion
Antistatic for dust protection reduced discharges no dissipative or conductive anti-blocking effect
UV Protection for outdoor use
FR flame retardant for higher fire resistance required
