Ref: SAMP-101 & 102

Dual-Axis Saw

The Dual-Axis Saw by Geofactory precisely cuts geological samples using a diamond saw blade, essential for sectors like oil and gas, mining, and geotechnical studies. Its precision is crucial for petrophysical analysis and geological assessments.

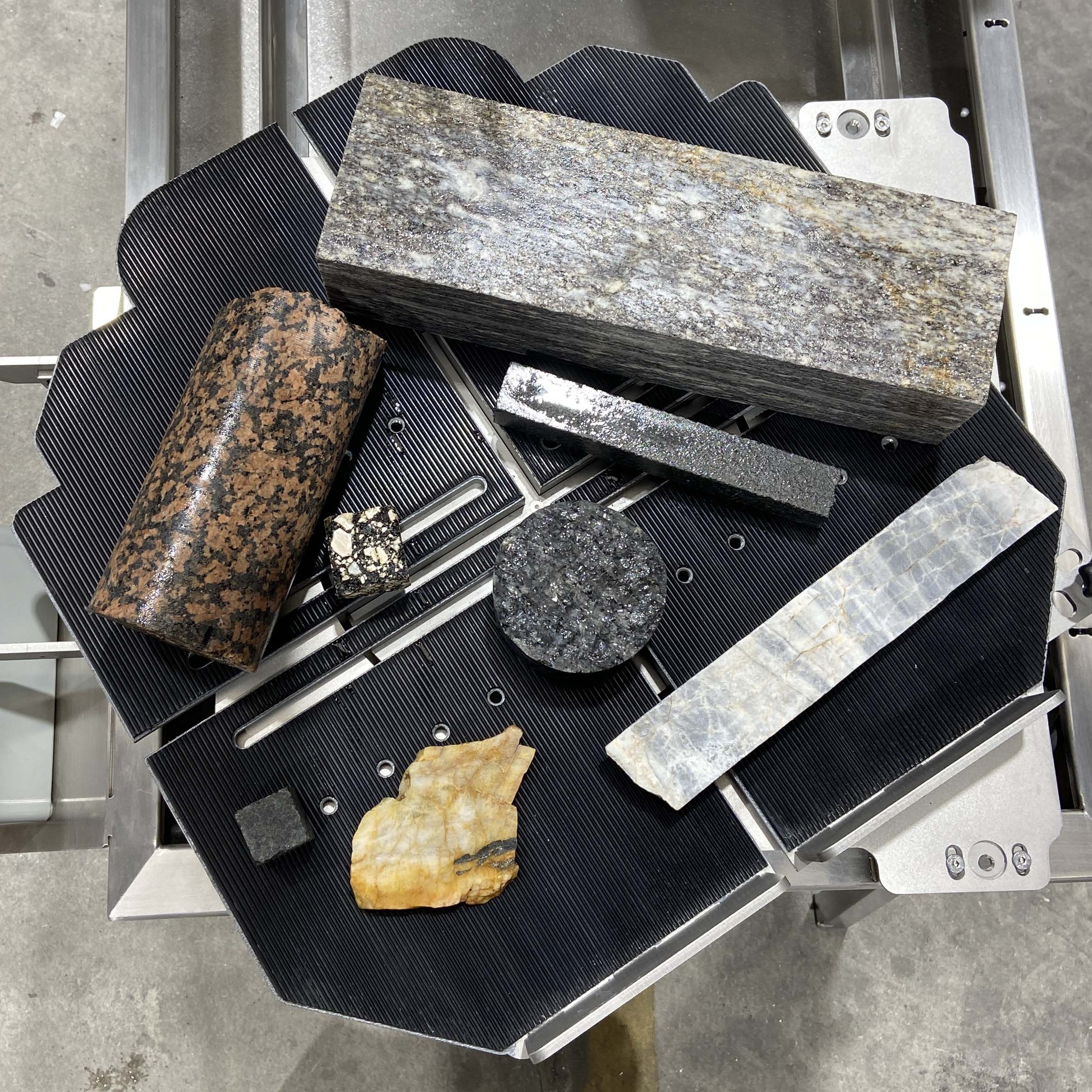

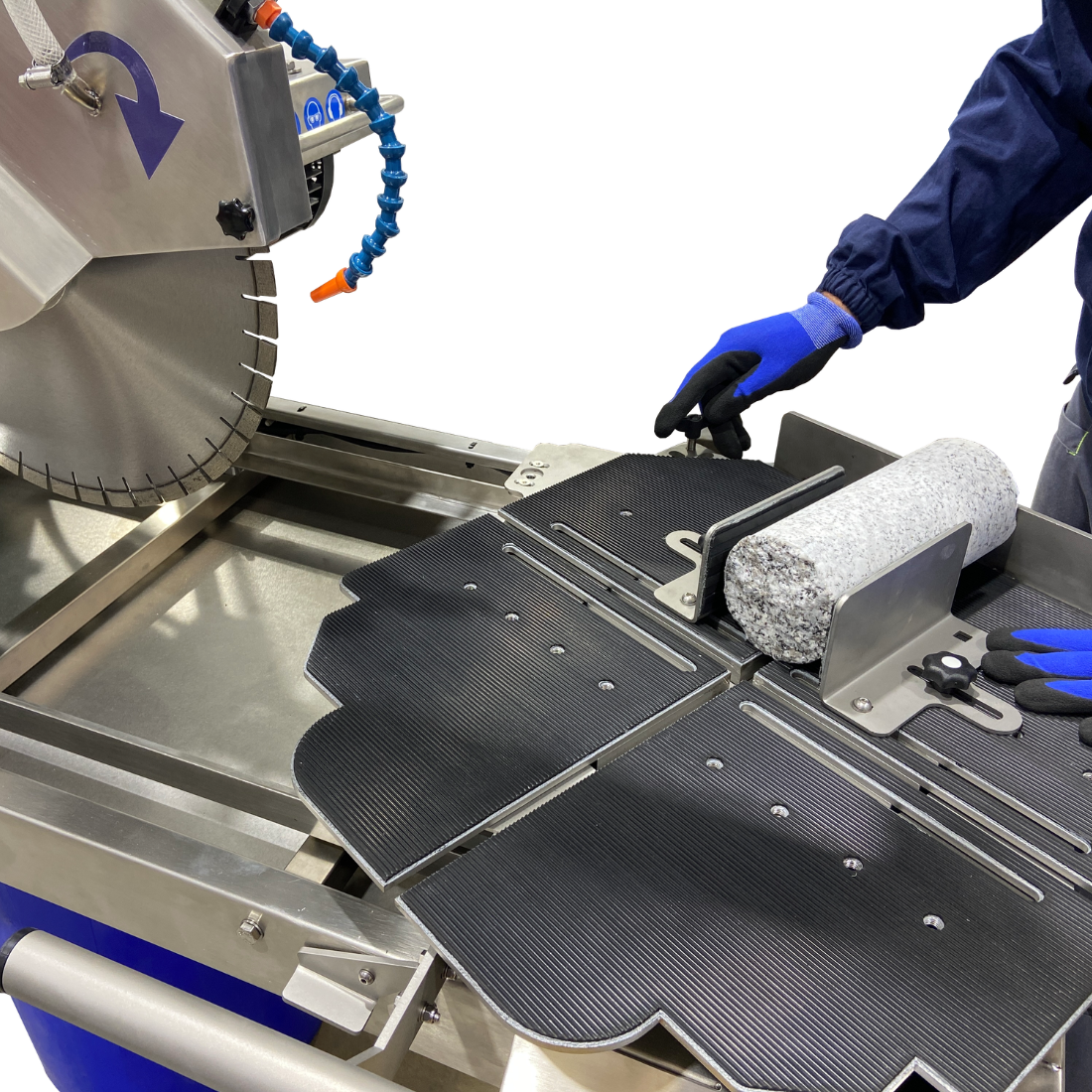

The Dual-Axis range of saws has been designed for the preparation of geological samples, pieces of rock, and drill cores. The innovation is in its rotary rock holder, which provides rotating support that allows cutting rock samples at 0° or 90° (slabbing and trimming). Easy to set up and move, this saw is indispensable in both field settings and laboratory environments for rock preparation. Geofactory offers 3 HP and 4 HP models, both with high-level safety features for secure and efficient operation, making them reliable for any geological application.

SAMP-101 SAMP-102

Material

Painted steel and Galvanized with aluminium profiles

Dimensions:

3HP Model: 1380x930x1485mm /54.33 x 36.61 x 58.50 in
4HP Model: 1380x930x1600mm / 54.33 x 36.61 x 62.99 in

Weight:

3HP Model = 113 kg
4HP Model = 139 kg

Power supply:

3HP Model = 220-230 VaC / 50 Hz (60Hz under request)
4HP Model = 380-400 VaC / 50 Hz

Motor power:

3HP Model One phase
4HP Model Three phases

RPM:

2800

Maximun cutting depth:

108 mm using a 350 mm blade / 14 inch blade
135 mm using a 400 mm blade / 16 inch blade

Maximun cutting length:

500 mm

Rotation:

0º or 90º

Diamond blade diameter:

350 mm/ 14 inch
400 mm / 16 inch

Fluid system:

Recirculating

Pump:

Water pump: 1.1 kW / 50 L / min
High viscosity pump: 0,37 kW = 370 W (Optional)

Tank capacity:

Standard: 100 L

Decanting tank: 300 L

Directly available in:

More Product Info:

How does the Explo Core Saw differ from other core saws on the market?

The mining drill core saw stands out with its exclusive design tailored for cutting drill cores up to 500mm in length and PQ in diameter, making it versatile for on-site and laboratory use. It features a robust recirculating water system for optimal cooling and cutting precision, and options for either a powerful tri-phase 4HP motor or a one-phase 3HP motor. Its portability, durable construction with painted steel and aluminum profiles, and compatibility with both standard and decanting tanks further distinguish it from other core saws on the market



What is the maximum core size this saw can handle?

The mining drill core saw can handle cores with a maximum length of 500 mm (19.69 inches) and a diameter up to PQ size.



Geofactory provide custom-made diamond blades for unique projects or requirements?

Yes, Geofactory specializes in providing custom-made diamond blades to meet the specific demands of your project. By closely collaborating with our manufacturer and analyzing your geological samples, we can tailor a blade to your exact specifications. This ensures optimal performance, precision, and longevity, even for the most challenging applications.



Can this lapidary rock saw be used for cutting all types of rocks?

Yes, the lapidary rock saw is designed to cut through various types of rocks, including hard materials like granite, which are commonly encountered in mineral exploration. Whether working with sedimentary, igneous, or metamorphic rocks, the diamond blade ensures precise and efficient cutting across these geological formations.



What power source does the Explo Core Saw require?

The mining drill core saw requires different power sources depending on the model. The 3HP model operates on a single-phase power supply of 220-230 VaC at 50 Hz, with 60 Hz available upon request. The 4HP model, on the other hand, uses a three-phase power supply of 380-400 VaC at 50 Hz.



How do I know if a mining drill core saw is the right tool for my project?

To determine if a mining drill core saw is suitable for your project, consider the following: First, assess the size of the core samples you need to cut—these saws are designed for precision cutting of drill cores up to specific lengths and diameters (e.g., PQ size, 500mm length). Second, evaluate the material composition of your cores to ensure compatibility with the saw’s diamond blades. Lastly, factor in your project environment, as these tools are ideal for both on-site and laboratory applications, offering portability and robust performance.
