The Plunge Cutter precisely controls plunger penetration in soft formations, extracting horizontal and vertical plug samples, with adjustable frames and tables
The Plunge Cutter is essential for precisely controlling the penetration of the plunger into soft and unconsolidated formations. Built with a hydraulic system, Geofactory offers an innovative model that provides the advantage of extracting both horizontal and vertical plug samples. The main frame is adjustable within a 90° range, and the worktable is equipped with a core support adjustable on axes X and Y, capable of holding cores up to 3 feet (1 meter) long and 6 ¾ inches in diameter. Additionally, the auxiliary mobile worktable provides ample surfaces for organizing handling operations, accommodating tools such as a digital balance, heat gun, and necessary consumables for the perfect preparation of the sample.

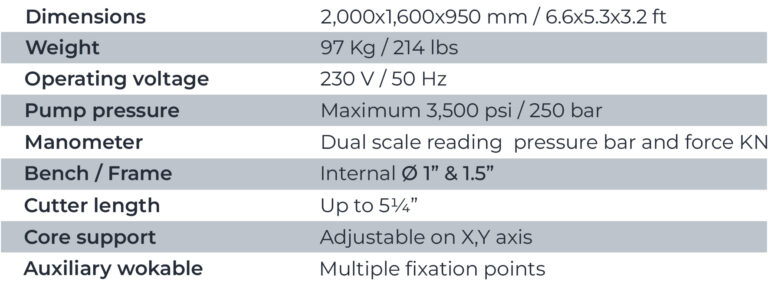

Material:
Stainless steel
Hydraulic system Dimensions:
2000x1600x950 mm6.6×5.3×3.2 ft
Weight:
97 Kg
Pump pressure:
Max 3500 psi/ 250 bar
Double-acting Cylinder pressure:
Max 3500 psi/ 250 bar
Manometer:
Dual scale reading for pressure (bar) and force (kN)
Bench/ Frame:
Cutter internal diameter:
1” & 1.5”
Cutter length:
Up to 5¼ ”
Core support:
Adjustable on X,Y axis
Auxiliary worktable:
Multiple fixation points
Voltage:
230 V/ 50 Hz230 V/ 50 Hz
