Geofactory’s Dust Extraction System ensures efficient dust collection, maintaining a clean workspace and enhancing the saw’s versatility for wet and dry slabbing.
Geofactory’s Dust Extraction System for the Slabbing Saw 500 ensures safe, efficient dust collection during geological dry cutting. Compact and powerful, it captures fine particles effectively, keeping the workspace clean and meeting high environmental standards. Easy to install, this system enhances the saw’s versatility, making it ideal for both wet and dry core slabbing operations.

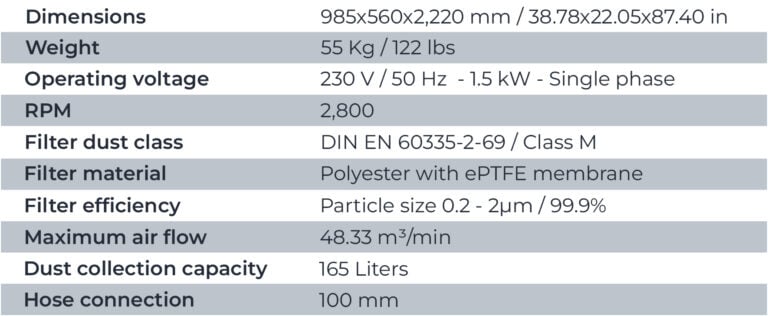

Filter Dust Class
DIN EN 60335-2-69 / Class M
Max. Air flow
48,33 m³/min
Filter Material
Polyester with ePTFE membrane (Pristyne by Gore)
Hose Connection Ø
100 mm
Dimensions
985x560x2220 mm / 38.78 x 22.05 x 87.40”
Filter Efficiency
Particle size0.2 –2 µm) / 99.9%
Dust collection capacity
165 Liters
Rotation speed
2800 rpm
Voltage / Frequency
230 V / 50 Hz – 1.5 kW (one -phase)
Weight Net
55 Kg / 121.25 lbs
